nine bay open plan modular building

Ref: 289

Nine bay new modular building. measuring 72'/22.5mtr x 20'/6mtr. Supplied open plan as standard.

£63,195 (+ vat)

enquire now



Nine bay new modular building. measuring 72’/22.5mtr x 20’/6mtr.
Supplied open plan as standard.



A nine bay open plan building will include as standard:-

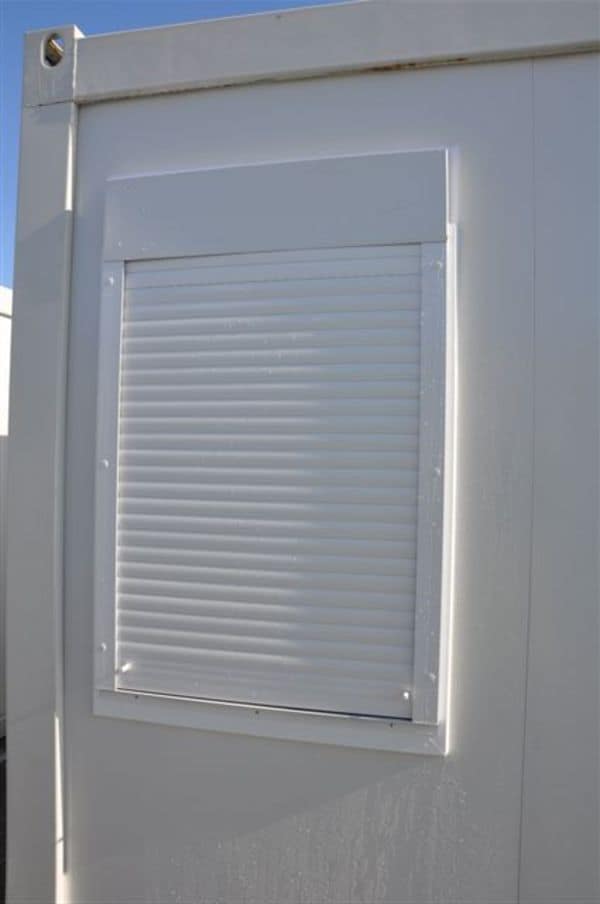

  • Eighteen 800mm x 1100mm double glazed tilt & swing PVCu windows with insulated aluminium roller shutters.
  • Two outward opening aluminium insulated door
  • ISO Roof panels
  • Composite steel wall panels
  • Insulation – Non combustible mineral wool ·Walls 60 mm, Ceiling 60 mm, Floor 100 mm
  • Water resistant cement resin floor (no timber)
  • Single piece PVC flooring (in each module)
  • Flush ceiling mounted consumer unit (in each module)
  • Eighteen ceiling mounted fluorescent lights
  • Flush mounted power sockets.
  • Assembled to your floor plan (door and window positions are interchangeable)
  • Full one year manufacturers warranty



Delivery to your site can be arranged with crane vehicles to unload the modules onto your prepared base. We can also provide fitter(s) on site to connect and weatherproof the building leaving it ready for you to connect your services.

Please contact us on 01298 79753 to discuss your requirements.
