six bay open plan modular building

Ref: 279

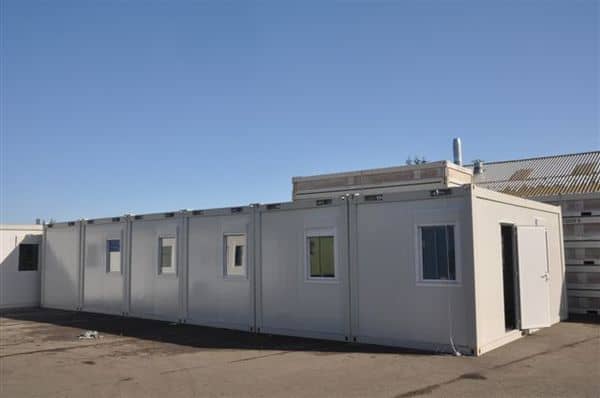

Six Bay Open Plan Modular Building 20'/6m x 48'/15m - Open Plan Building, ideal for use as office, canteen, classroom etc. Modular buildings are a quick and effective remedy to your accommodation needs.

£36,495 (+ vat)

enquire now

general

General

Six Bay Open Plan Modular Building

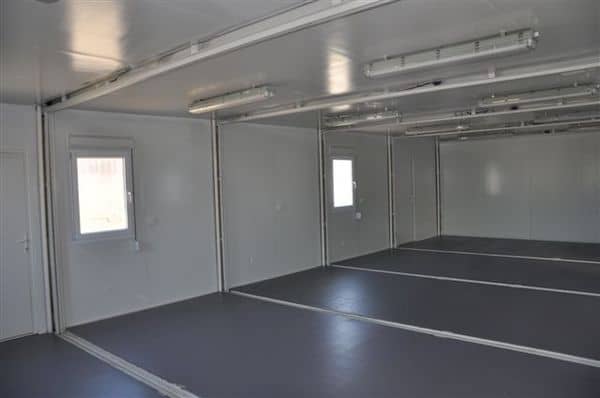

20’/6m x 48’/15m – Open Plan Building, ideal for use as office, canteen, classroom etc. Modular buildings are a quick and effective remedy to your accommodation needs.

specification

Specifications

A 6 Bay open plan building includes as standard:-

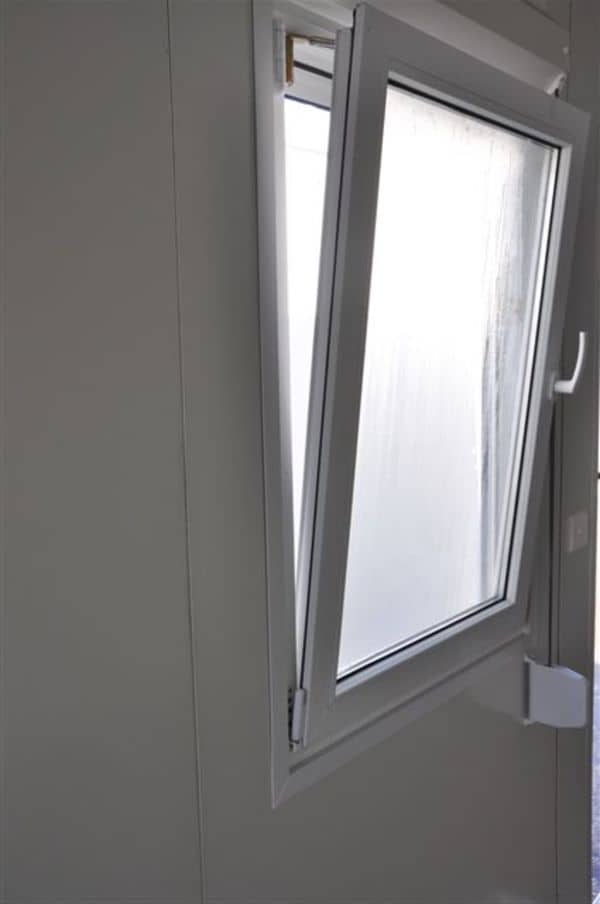

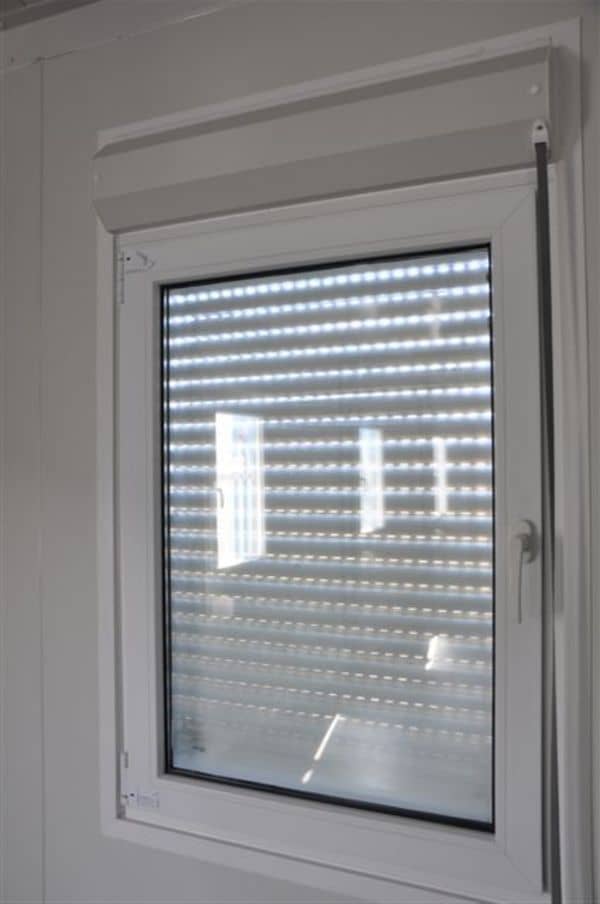

  • Twelve 800mm x 1100mm double glazed tilt & swing PVCu windows with insulated aluminium roller shutters.
  • Two outward opening aluminium insulated door
  • ISO Roof panels
  • Composite steel wall panels
  • Insulation – Non combustible mineral wool ·Walls 60 mm, Ceiling 60 mm, Floor 100 mm
  • Water resistant cement resin floor (no timber)
  • Single piece pvc flooring (in each module)
  • Flush ceiling mounted consumer unit (in each module)

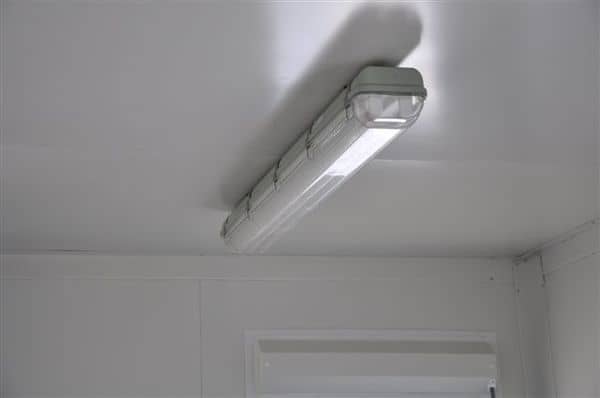

  • Twelve ceiling mounted fluorescent lights
  • Flush mounted power sockets.
  • Assembled to your floor plan (door and window positions are interchangeable)
  • Full one year manufacturers warranty

Extra windows, doors, toilets, kitchenette and internal partitions can be added during assembly to your own floor plan.

dimension

Dimensions

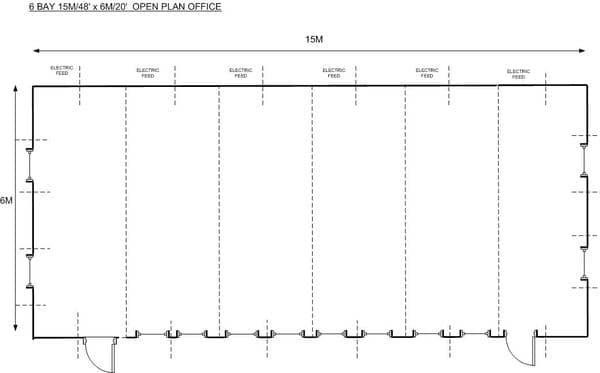

20’/6m x 48’/15m – Open Plan Building

delivery

Delivery

Transport to your site can be arranged please contact us on 01298 79753 to discuss your requirements.a
