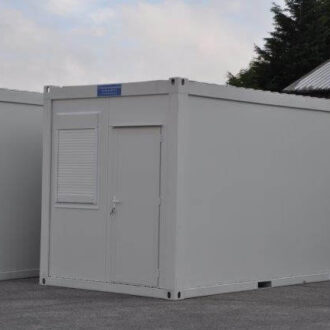

20′ x 8′ unit with separate toilet – shower and kitchen areas

General

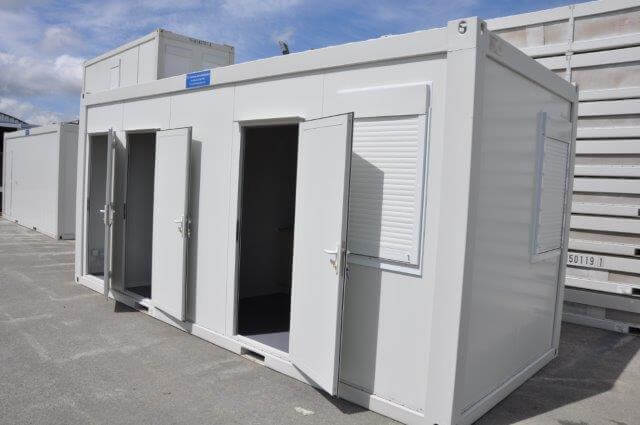

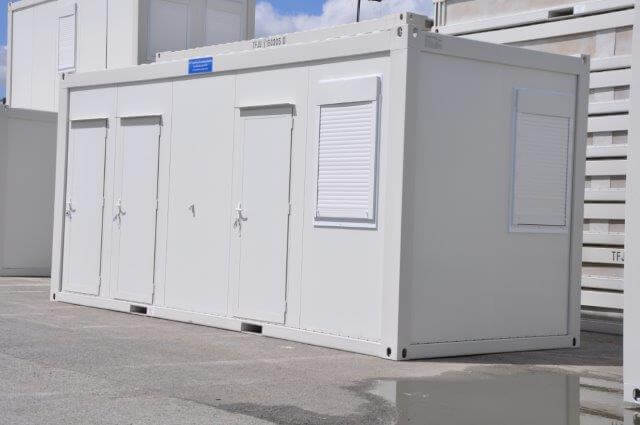

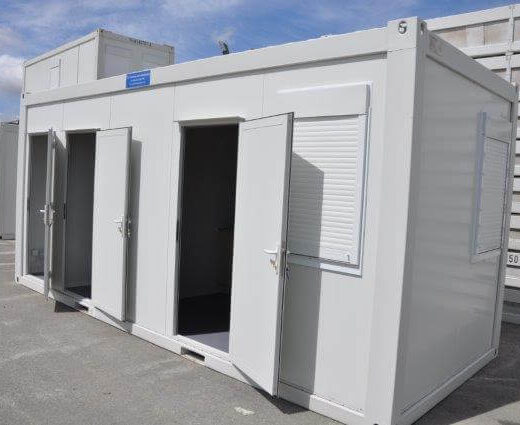

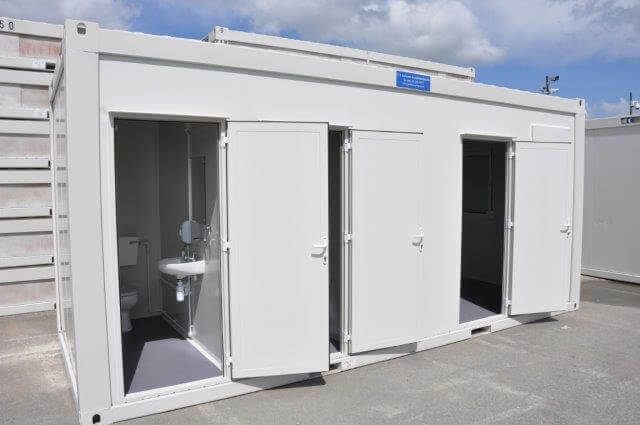

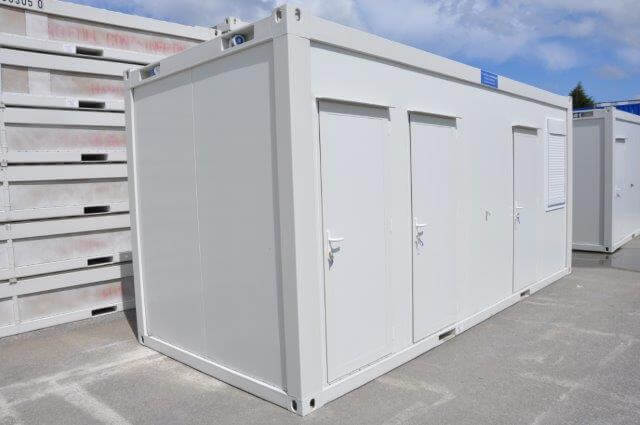

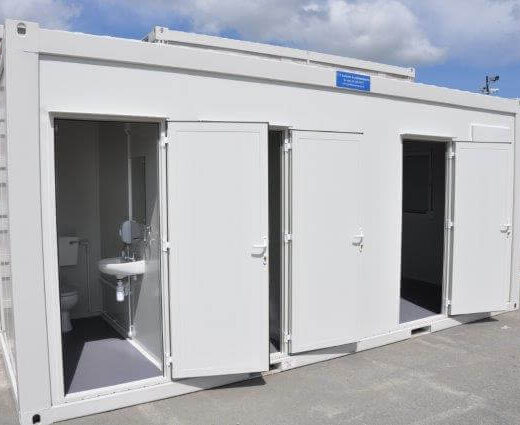

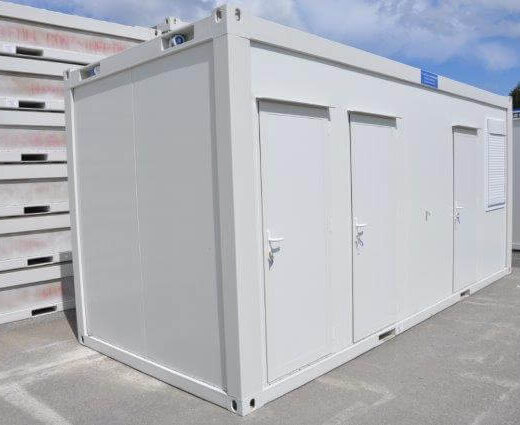

20′ x 8′ Unit with separate toilet, shower and kitchen areas – Ideal for camp site or site welfare.

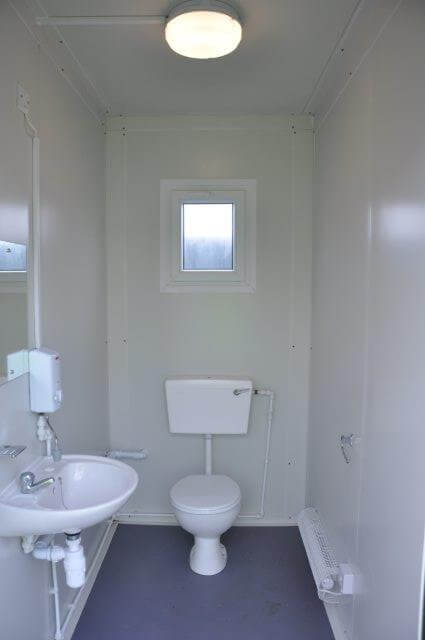

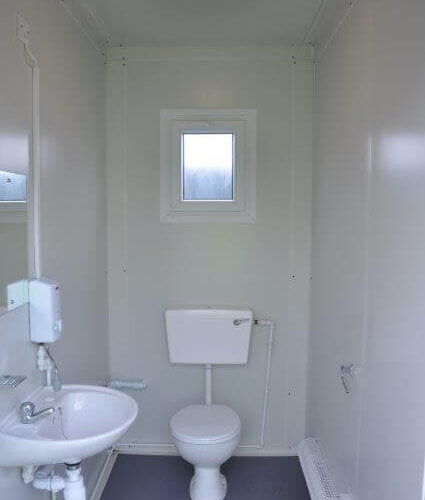

Toilet – (approx 1.2 x 2.4) Mains flushing toilet with hand basin, cold tap, electric hand wash, mirror, towel holder, soap dish, toilet roll holder, tube heater, light fitting & single glazed obscure high level window.

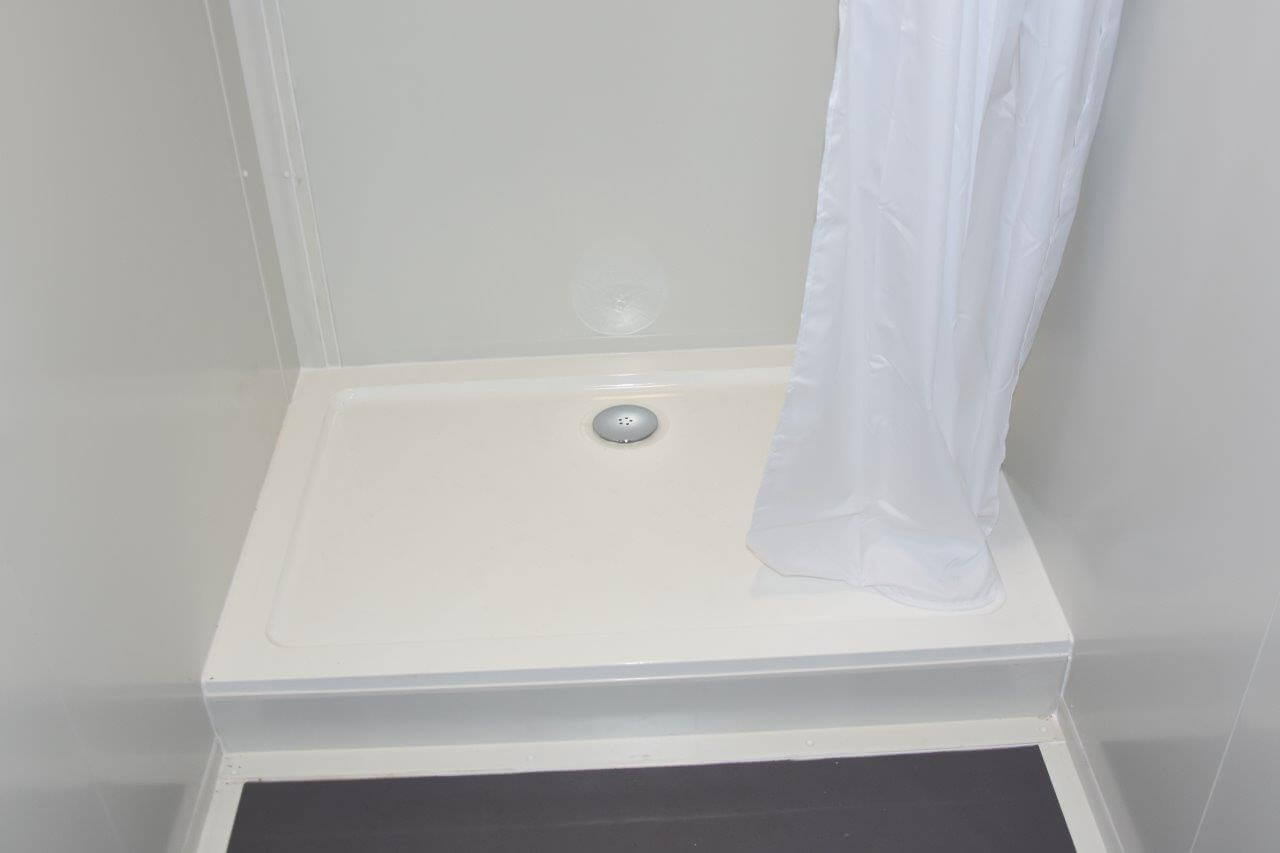

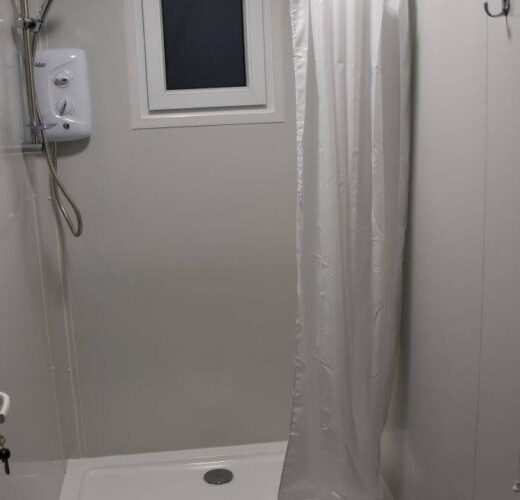

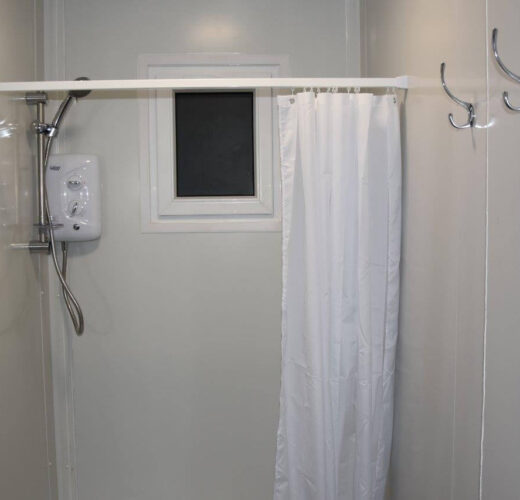

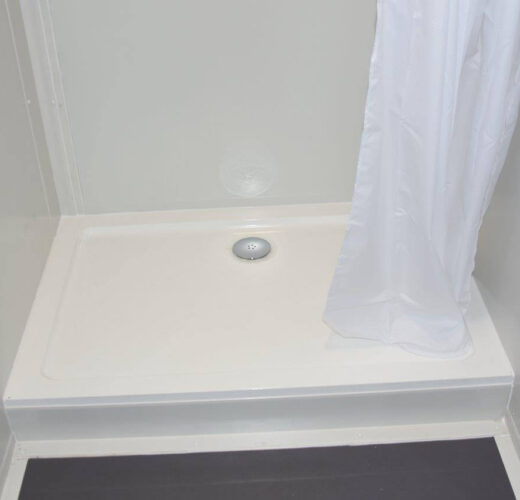

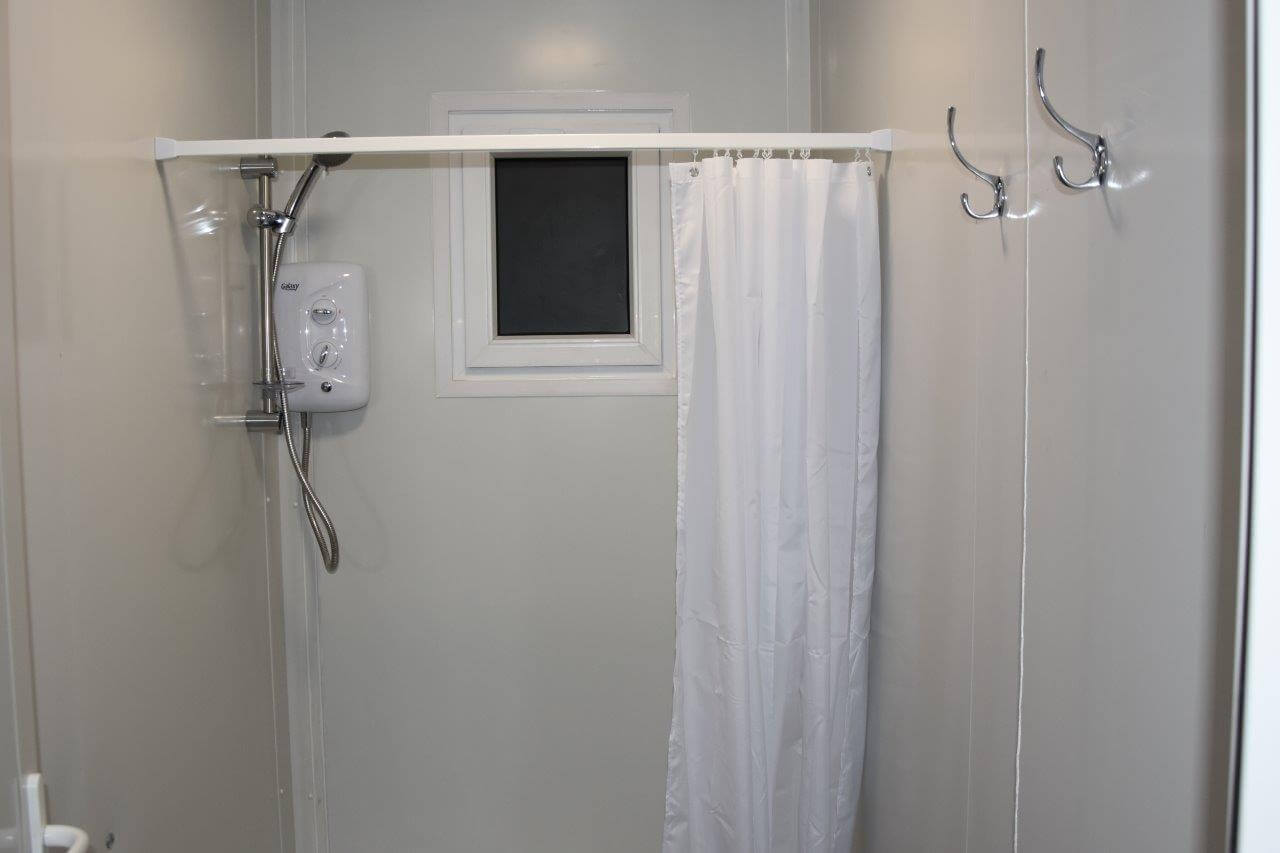

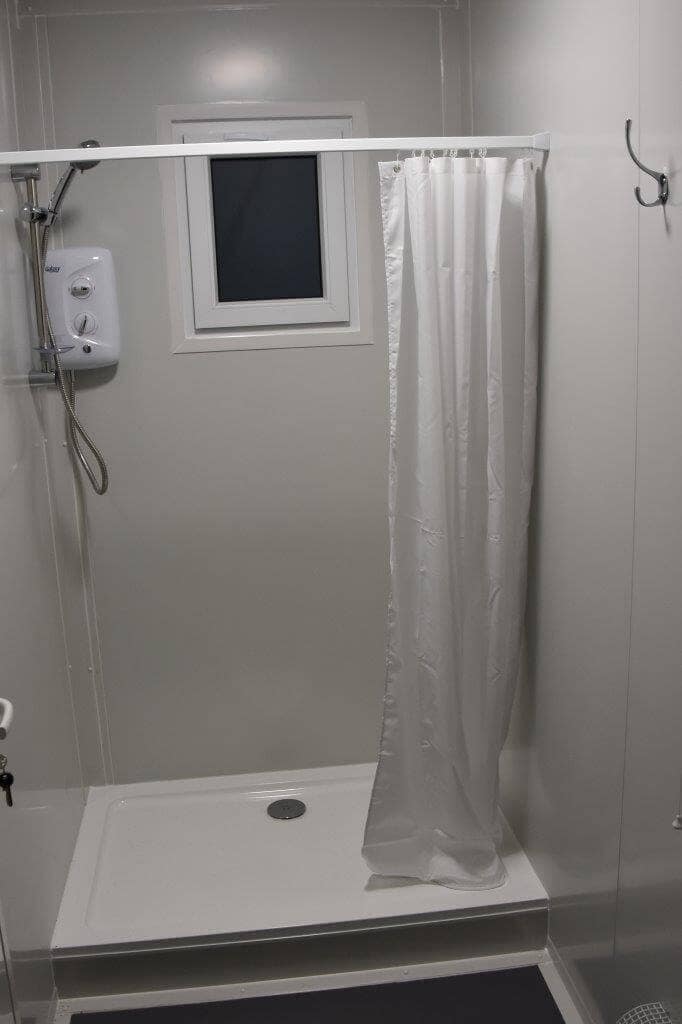

Shower – (approx 1.2 x 2.4) Tray with electric shower unit, curtain, coat hooks, tube heater, light fitting & single glazed, obscure high level window

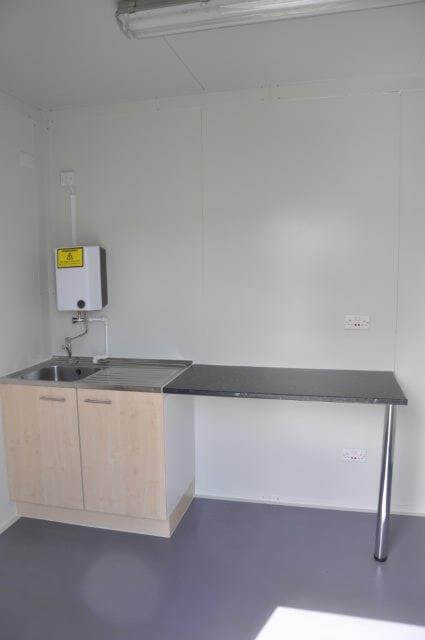

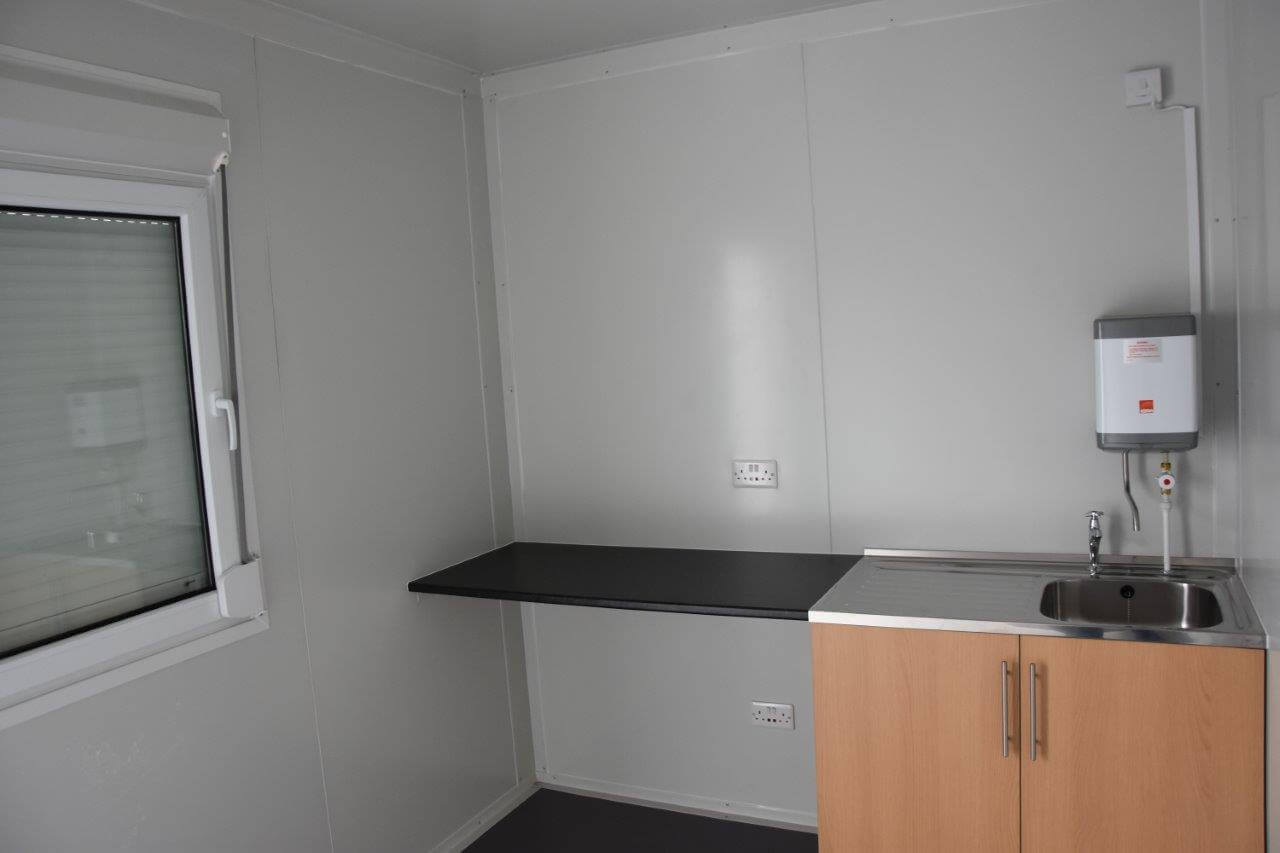

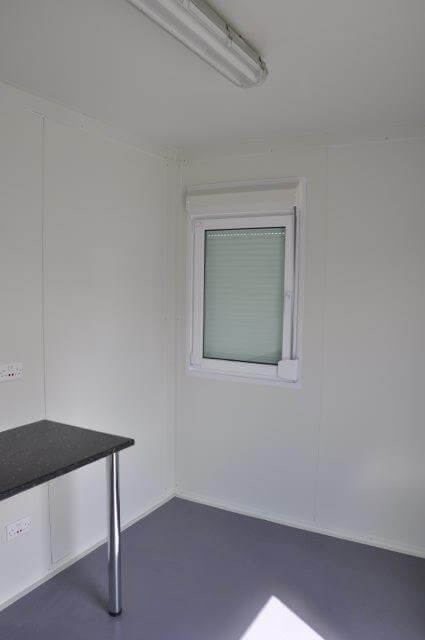

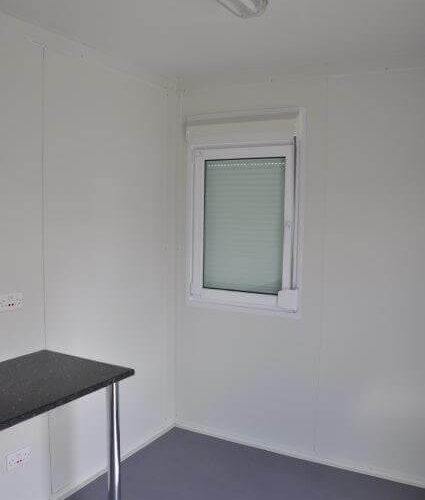

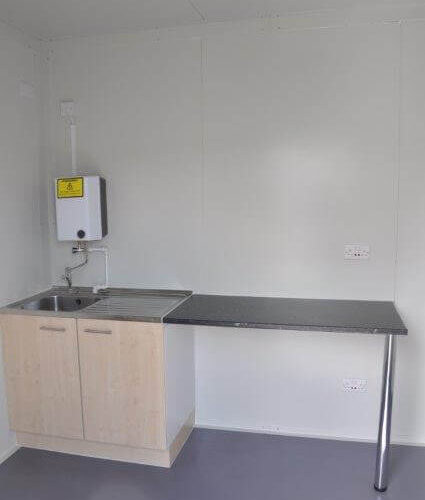

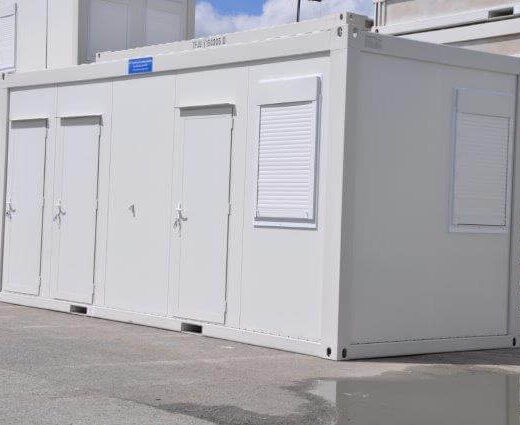

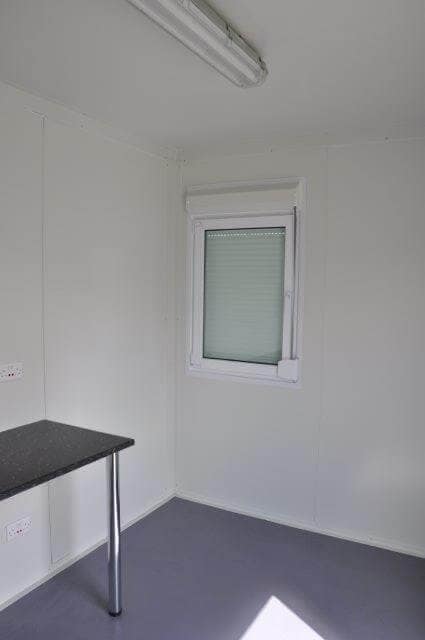

Kitchen – (approx 3.6 x 2.4) 1000 mm base unit, stainless steel single drainer sink, cold tap, 7ltr wall mounted water heater, worktop with double socket above & below. Two double glazed tilt & turn windows with aluminium roller shutters externally.

Specification

• ISO Roof panel
• Composite steel wall panels
• Insulation – Non combustible mineral wool ·Walls 60 mm, Ceiling 60 mm, Floor 100 mm
• Water resistant cement resin floor (no timber)
• Single piece PVC flooring
• Flush ceiling mounted consumer unit
• Two ceiling mounted fluorescent lights
• Flush mounted power sockets.
• Assembled to your floor plan (door and window positions are interchangeable)
• Full one year manufacturers warranty

Dimensions

Toilet – approx 1.2m x 2.4m

Shower – approx 1.2m x 2.4m

Kitchen – approx 3.6m x 2.4m

Delivery

Transport to your site can be arranged please contact us on 01298 79753 to discuss your requirements.
